High-density Wi-Fi 6 AX6000 outdoor access point for demanding outdoor capacity needs
✓ Genuine Ruijie / Reyee product — supplied by Spollex

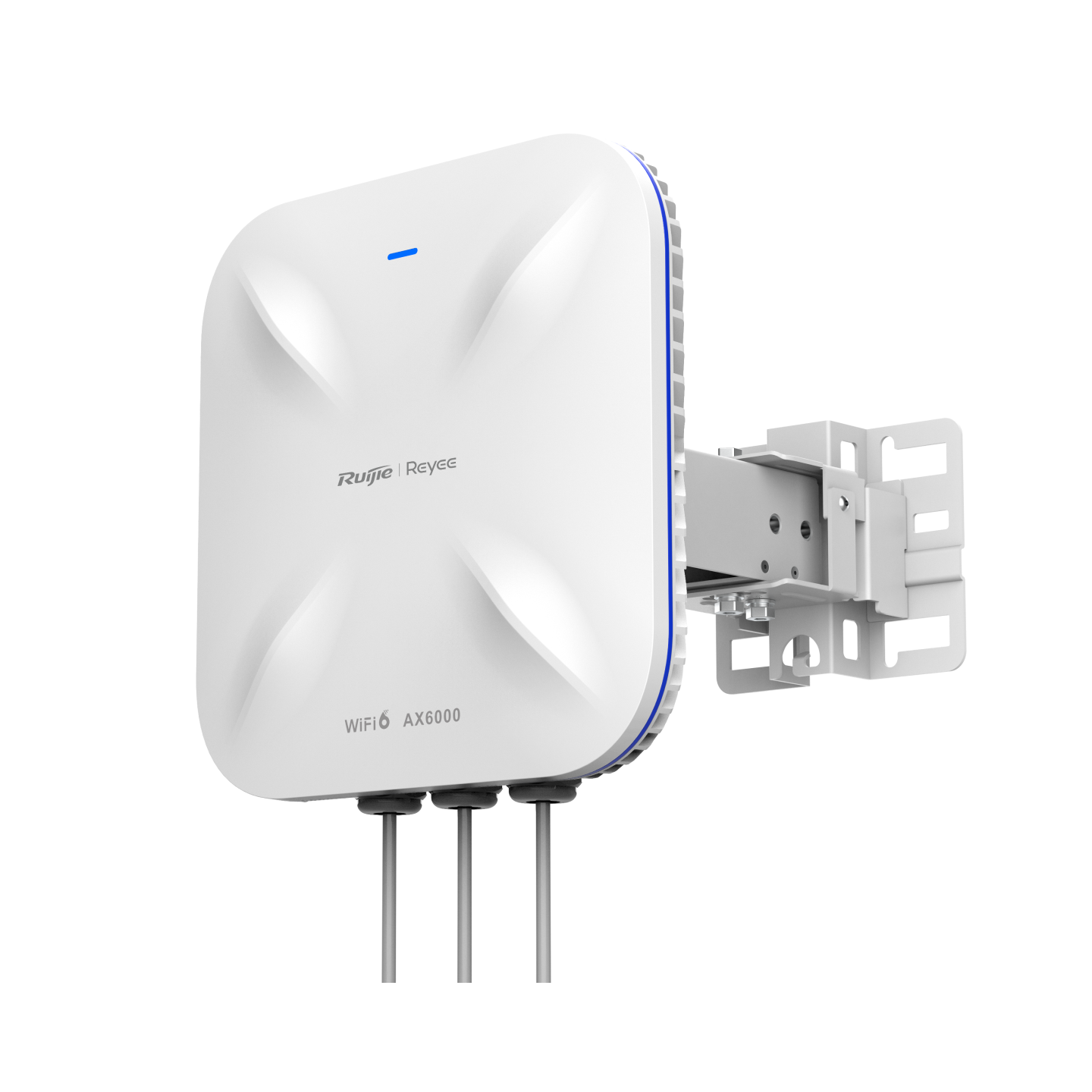

The RG-RAP6260(H) is a high-density outdoor Wi-Fi 6 access point rated for up to 5950 Mbps combined wireless throughput, aimed at outdoor sites with heavier concurrent-user demand than a standard outdoor AP can comfortably handle. Eight built-in high-gain antennas extend coverage further than typical outdoor units.
Outdoor locations with dense concurrent Wi-Fi demand — stadiums, large campuses, and event spaces — where a standard-capacity outdoor AP would be oversubscribed.
Wi-Fi 6 with OFDMA, 1024-QAM and 160 MHz channels for up to 5950 Mbps combined throughput
Dual-band 4×4 MU-MIMO for high concurrent-device density
Eight built-in high-gain antennas for extended outdoor coverage (up to ~300 m at 5 GHz)
Supports up to 512 concurrent users
2.5GE SFP uplink with fiber runs to 20 km
IP68-rated, 4 kV surge-protected housing for continuous outdoor use
Seamless Layer 3 roaming across a multi-AP outdoor deployment
| Wireless Standard | IEEE 802.11ax, OFDMA, 1024-QAM, 160 MHz channels |
| Frequency Bands | 2.4 GHz (1148 Mbps) and 5 GHz (4804 Mbps) |
| Combined Wireless Rate | 5950 Mbps |
| MIMO | Dual-band 4×4 MU-MIMO |
| Max Concurrent Users | Up to 512 |
| Antennas | 8 built-in high-gain antennas |
| Coverage Radius | ~100 m @2.4GHz, ~300 m @5GHz |
| Uplink | 2.5GE SFP port |
| Max Fiber Distance | Up to 20 km via single-mode fiber |
| Ingress Protection | IP68, 4 kV surge protection |
| Mesh | Reyee Mesh, seamless Layer 3 roaming |
The RG-RAP6260(H) is positioned for outdoor sites where user density and coverage radius both matter — stadiums, large open campuses, transit hubs, and event grounds — rather than a typical yard or car park that a standard outdoor AP already covers.
As a higher-capacity sibling to the RG-RAP6260(G), it shares the same Reyee Mesh and Ruijie Cloud ecosystem, so both models can be mixed on one site — standard AX1800 units for lighter areas, AX6000 units for high-density zones.
The RG-RAP6260(H) is available through Spollex, subject to product availability. Submit a product requirement to receive current pricing, lead time, and shipping options for your destination.
For orders outside Spollex's core Authorized Distributor markets (UAE, Oman, Nepal), we support export and supply inquiries subject to destination requirements, commercial terms, and shipping feasibility — confirmed per inquiry, not guaranteed in advance.
Tell us your quantity, project type, and delivery location — we'll follow up with pricing and availability.
Request a Ruijie Product Quotation
